The advantage of working in soapstone is that it can be worked with hand tools. Other stones that can be carved are alabaster, onyx and serpentine. When I first started carving, I had very little money but a lot of enthusiasm I relied on working with hand tools. I became so proficient with the files and rasps, that when I could afford power tools, I found I did not want them. The tools below are from my studio and are some of the tools I work with dailly. Carving tools have basically always been the same, the chisel, the rasp and the mallet. Time may have improved the steel that the tools are made of, but the techniques remain the same. |
At the left top, is the Combination rasp. A combination of a flat file on one side and a half round rasp on the other. The second down is the Cabinet rasp is a wider version of the wood rasp. It also has finer teeth to give a smother finish before sanding. Third down is the Wood rasp is available
at a local hardware store. I say that with tongue in cheek, because
in today's modern technology, the powers that operate the modern
hardware stores, they are getting harder to find. Generally the
10 inch rasp is available. The 8 inch and 6 inch rasps are harder
to find. Shown is the 6 inch rasp. |
|
These rasps are cheaper then the riffler rasps, but give the diversity of shapes. |

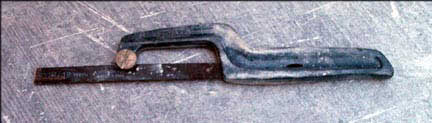

For cutting the stone, I have found the "mini hack", a type of hacksaw made by "Stanley" to be a very versatile saw. By using carbon steel hacksaw blades and cutting, grinding or breaking the end off, you can have a saw that cuts into a drill hole or any other difficult area. |
The bottom tool is made from a triangular file. The tip is ground at an angle to form a triangular shaped knife. The handle is formed to fit into the palm of the hand A hand drill or power drill should be available for "pointing". This is a technique for removing large amounts of stone from hard to file or chisel areas. I have used the term pointing for a method that involves the removal of stone in by studio apprentices. My method is different, but the result is the same. A description will be found elsewhere in these pages. |
The chisel and mallet are still the prime tools of sculpture. You can purchase the sculpture chisels from a sculpture supply store if you are working on the harder varieties of soapstone. Generally, I find the common wood chisel to be equal for using with the softer stones. I prefer a mallet to a hammer for the control it gives me. At the left are some of the mallets, hammers and chisels that I use in my studio. |

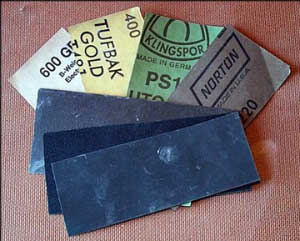

SILICON CARBIDE: A black (sometimes gray) abrasive, produced from silica sand and coke (a coal product). This abrasive is very hard and sharp, good for use on Soapstone (e.g., hand sanding). Silicon carbide is the abrasive most commonly used for wet/dry sandpapers. Sandpaper for wet sanding has a flexible, waterproof resin backing, and is usually coated with silicon carbide. It is used for fine finishing and polishing. |
Sculpture Supply Canada 345 Munster Avenue, Etobicoke, Ontario M8Z 3C6 Phone: (416) 234-1075 Fax:(416) 234-1516 |
S B Simpson Group Inc Address: 3210 Mainway, Burlington, Ontario (905) 335-6575 16 Rutherford Rd S, Brampton, Ontario (905) 459-1312 799 Farewell St, Oshawa, Ontario (905) 723-1151 Habilus rasps and Cabinet Rasps |
******************** H.A. Ness & Co. Inc. 60 Royalavon Cres, Etobicoke, Ontario P.O.Box 11, Stn 'U' Toronto, ON M8Z 5M4 Tel:(416)231-1645, Fax:(416)231-0231 Outside Toronto 1-800-668-6377 Email: glen.ness@soapstonecanada.com Milani rifflers |
******************** Tabvlarasa Tabularasa srl Viale dello Scalo S. Lorenzo, 40, 00185 Rome 40 - Roma -00185- Italia +39-06-4450070 +39-06-4456760 fax Milani Riffler Rasps, Sculpture tools Excellant shipping |
******************** Otto Frei 126 2nd St, Oakland, CA , USA 94607 email: info@ottofrei.com phone: (510) 832-0355 |
******************** Sculpture House 155 W. 26th. St. New York City, NY 10001 Toll- Free Order Line (888) 374-8665 24 Hour Fax (212) 645-3717 |
******************** Western Sculpting Supply 2855 West 8th Ave. Denver, CO 80204 303-623-4407. fax: 303-623-8439 Standard stone tools, Milani tools |
******************** The Compleat Sculptor Inc. , 90 Vandam St. New York City, NY 10013 Toll-free # 800-9-SCULPT 1-212-243-6074 |
******************** Alec Tiranti Limited 70 High Street, Theale, Reading RG7 5AR, UK. Tel: +44 (0)118 930 2775 Fax: +44 (0)118 932 3487 |
******************** Foster's East Ltd 2085 Whittington Dr, Peterborough ON, K9J 6X4 tel: 705-745-0535 fax: 705-742-8971 Klingspor Wet/Dry Sandpaper |
******************** Pothier Enterprises Ltd. #4 -7187 Honeyman Street, Delta B.C. V4G 1E2 Ph. (604) 946-3811 Fax (604) 946-3788 |
******************** Palm Beach Sculpture Supplies 1400 Alabama Ave. Ste 1 West Palm Beach, FL 33401 561.832.3933 info@PalmBeachSculpture.com http://palmbeachsculpture.com/ |
******************** Art City Sculpture Studios and Supply 31 Peking St. Ventura, CA 93001 805-648-1690 800-490-0746 fax: 805-648-1295 |
******************** Renaissance Stone Sculpture Studio and Gallery Rose and Robert Black 751 Moorpark St. Oakland, CA. 94603 (510) 638-2404 |
******************** Discount Marble and Tools PO Box 2721 North Hills, CA 91393 800-2-SCULPT 818-891-1909 Stone supplier, tools, hand tools, |
******************** Stone Sculptors Supplies 970 Cunningham Rd., Sebastopol CA 95472 (Open by appointment) 707-869-1021 |
******************** Sculpture House 405 Skillman Road PO Box 69 Skillman, NJ 08558 Phone: 609 466-2986 Fax 888 529-1980 |
|
